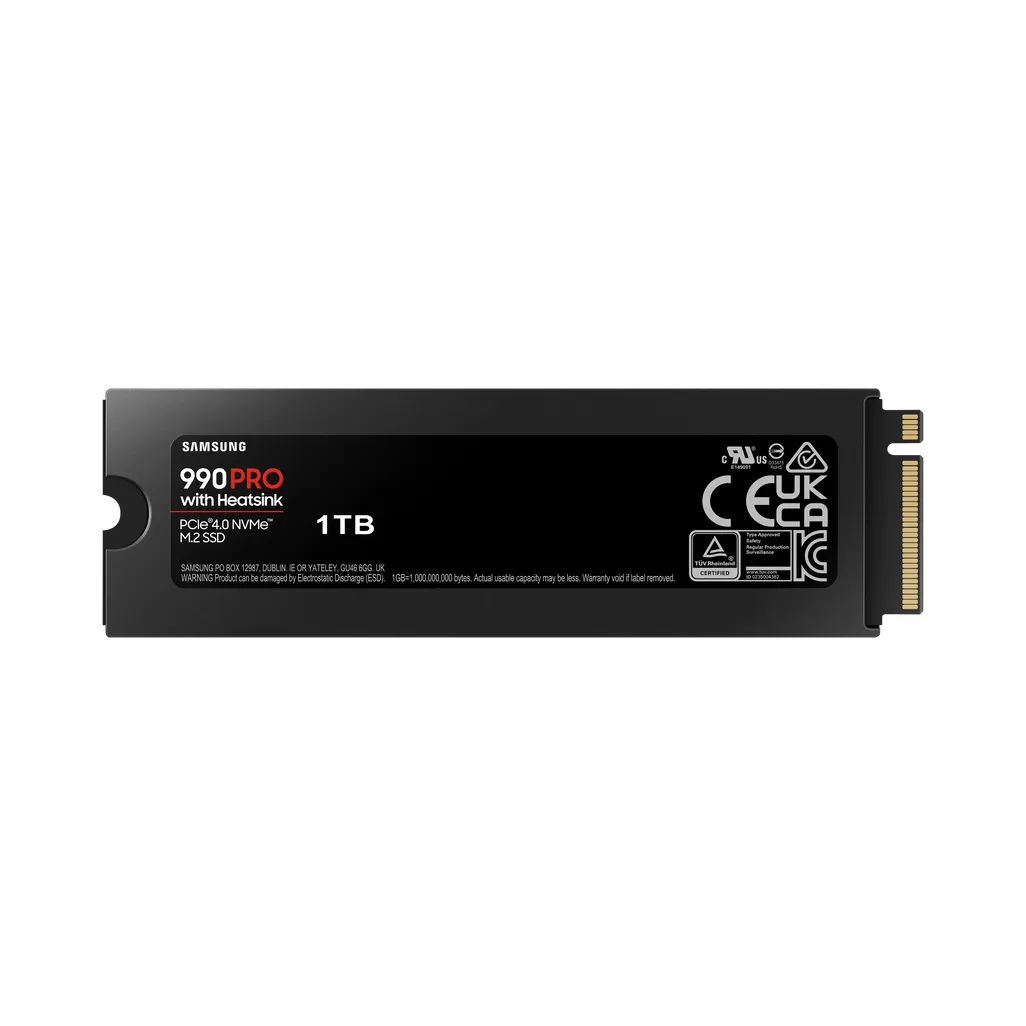

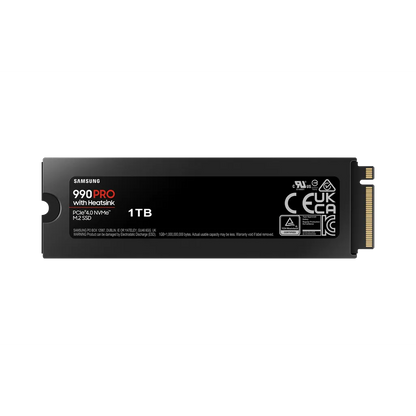

Samsung 990 PRO 1TB NVMe SSD

Samsung 990 PRO 1TB NVMe SSD (Model: MZ-V9P1T0CW) is a high-performance solid-state drive designed for demanding applications such as gaming, content creation, and data-intensive tasks. Equipped with a built-in heatsink, it ensures optimal thermal management, making it suitable for both desktop PCs and PlayStation 5 consoles.

 Key Specifications

• Capacity: 1TB (approx. 1,000 GB)

• Form Factor: M.2 2280 (with heatsink: 80.0 x 24.3 x 8.2 mm)

• Interface: PCIe 4.0 x4, NVMe 2.0

• Controller: Samsung Pascal (S4LV008)

• NAND Flash: Samsung 176-layer V-NAND TLC

• DRAM Cache: 1GB LPDDR4

 Performance

• Sequential Read: Up to 7,450 MB/s

• Sequential Write: Up to 6,900 MB/s

• Random Read (4KB, QD32): Up to 1,200,000 IOPS

• Random Write (4KB, QD32): Up to 1,550,000 IOPS

• SLC Write Cache: Approx. 114 GB (108 GB dynamic + 6 GB static)

 Features & Reliability

• Encryption: AES 256-bit, TCG/Opal 2.0, MS eDrive

• Endurance: 600 TBW (Terabytes Written)

• MTBF: 1.5 million hours

• Warranty: 5-year limited warranty

• Power Consumption:

  • Idle: 0.05 W

  • Active: Up to 7.8 W

 Thermal Management

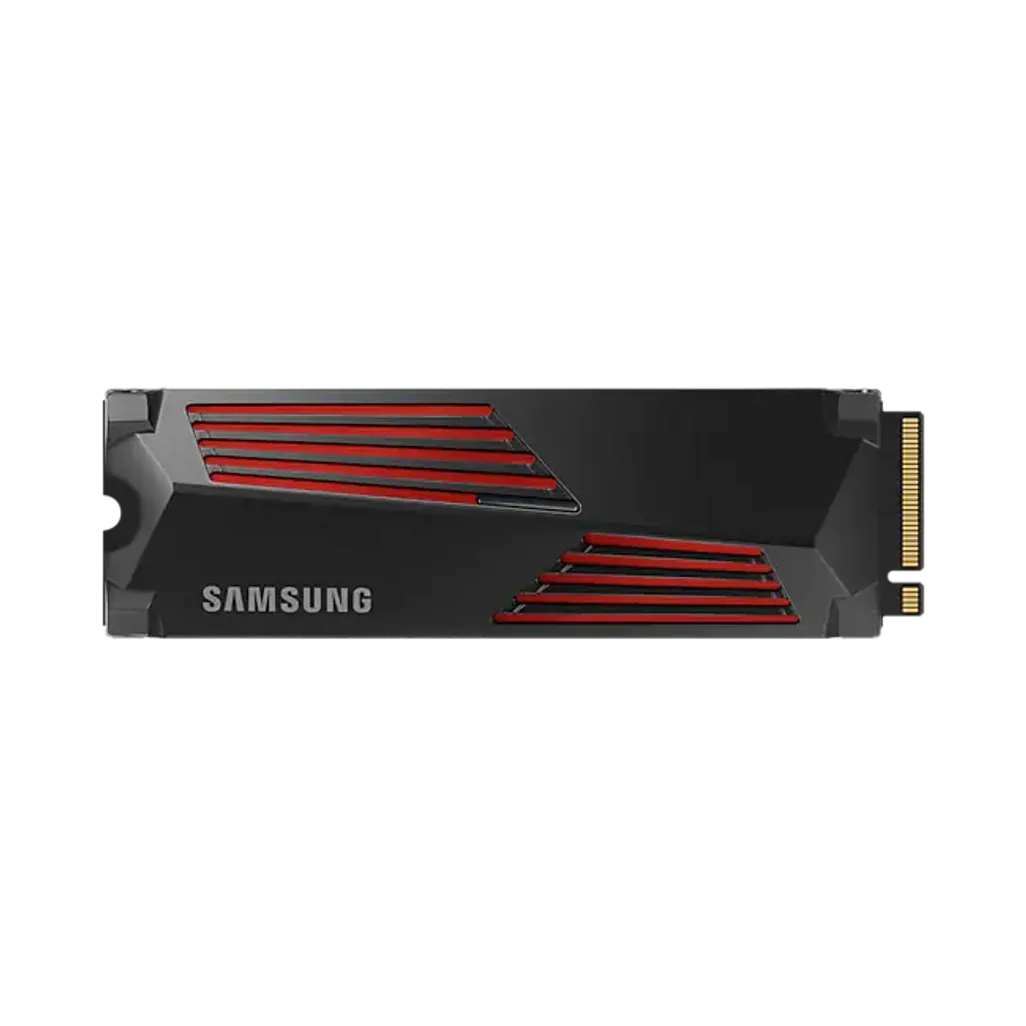

The integrated heatsink ensures efficient heat dissipation, maintaining optimal performance during intensive tasks. Its design complies with the PCI-SIG D8 standard (maximum height of 8.8 mm), ensuring compatibility with a wide range of systems, including the PlayStation 5.

 Compatibility & Use Case

The Samsung 990 PRO 1TB SSD is ideal for users seeking top-tier performance in gaming, video editing, 3D modeling, and data analysis. Its high-speed capabilities and thermal efficiency make it a suitable upgrade for both desktop PCs and gaming consoles like the PS5.
