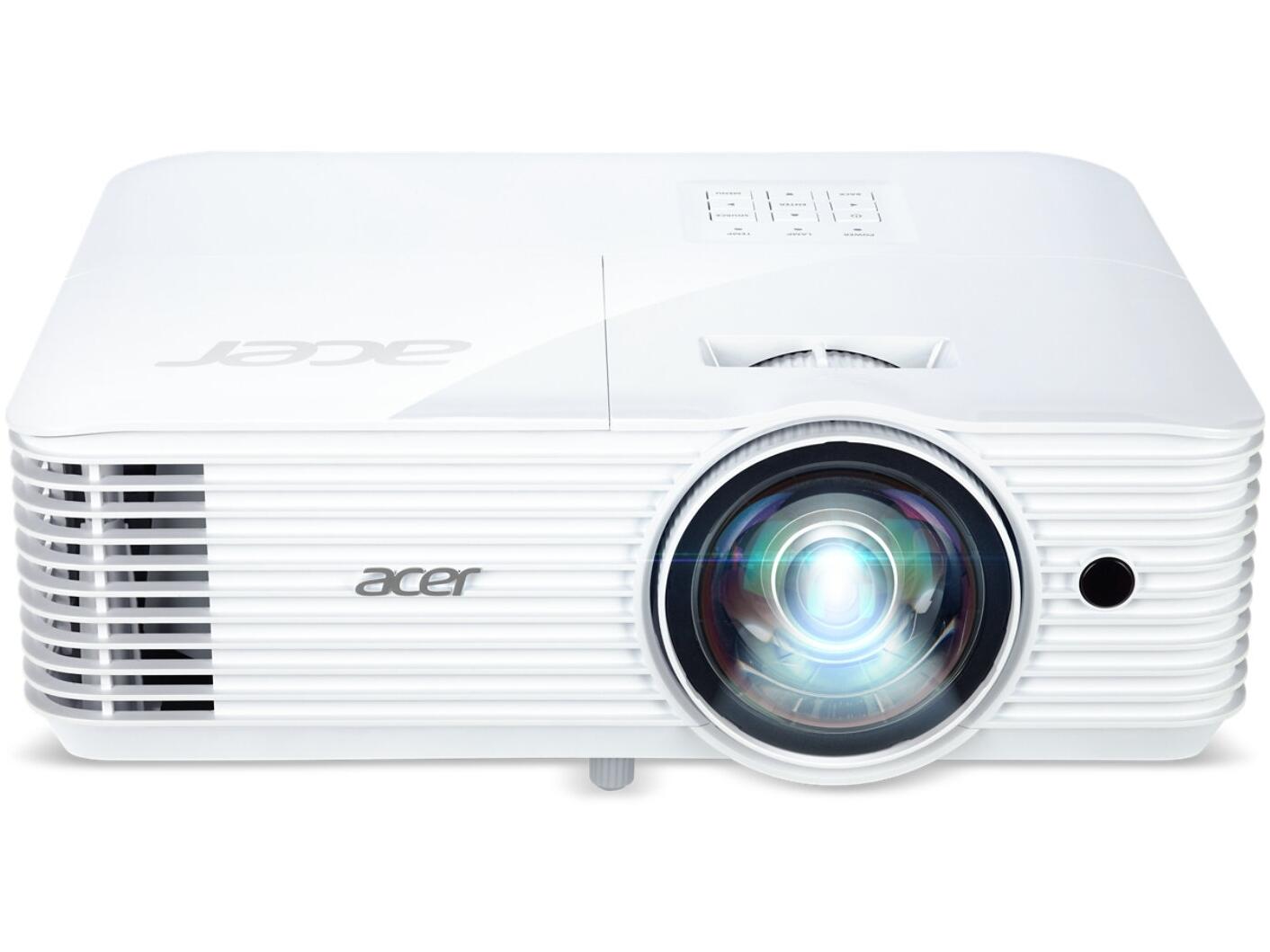

Acer short throw Projector S1386WH

Model Name:
• Acer S1386WHN

Projection System:
• 0.65” DarkChip 3 DMD

Resolution:
• WXGA (1,280 x 800)
• Maximum: WUXGA (1,920 x 1,200)

Brightness:
• 3,600 ANDI Lumens (Standard)
• 2,880 ANSI Lumens (ECO)
• (Compliant with ISO 21118 Standard)

Aspect ratio:
• 16:10 (Native), 4:3/9 Supported)16:10 (Native)

Contrast ratio:
• Dynamic Black 20,000:1

Throw ratio:
• 0.52 (87"@98cm)

Projection lens:
• F = 2.80, f = 7.51mm, Manual Focus

Keystone correction:
• +/ -15° (Vertical, Manual), +/ -15° (Horizontal, Manual), 4-Corner adjustment

Lamp Life
• 5,000 hours (Standard)
• 6,000 Hours (ECO)
• 10,000 Hours (ExtremeEco)

Noise Level:
• 32 dBA (Standard), 24 dBA (ECO)

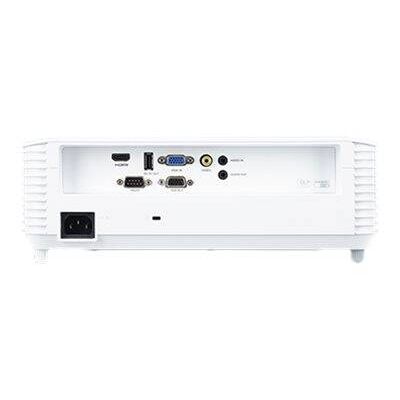

Input Interface:
• Analog RGB/Component Video (D -sub) x 2
• Composite Video (RCA) x 1
• HDMI/MHL (Video, Audio, HDCP) x 1
• HDMI (Video, Audio, HDCP) x 1
• PC Audio (Stereo mini jack) x 1

Output Interface:
• Analog RGB (D -sub)
• PC Audio (Stereo mini jack) x 1
• DC Out (5V/1A, USB Type A) x 1, share the input

Control Interface:
• RS232 (D -sub) x 1

Dimensions:
• 313 mm X 255.25 mm X 113.7 (w/feet) (12.3"x 10"4.5")

Weight:
• 3.1Kg (6.8lbs)

Feature Highlights:
Expressive display:
• Short throw projection
• 3, 600 ANSI
• Dynamic Black 20,000:1
• Acer LumiSense
• Acer Bluelight Shield
• Acer ColorBoost 3D
• Acer ColorSafe II
• HDMI 3D ready

Enhanced usability
• USB Display (PC & Mobile)
• Lan Projection Lan
• Crestron Network Control
• Multimedia Playback
• Wireless projection(optional)
• Sealed optical engine
• 16W speaker
• Digital Connectivity HDMI™ (Dual)
• MHL™ Connectivity

Installation flexibility
• 15° Vertical, Manual Correction
• 4-Corner Keystone Correction
• Top-loading lamp
• Fast Pack
• I/O power on AC power on/Auto

Eco-friendly functionality:
• Acer Eco Projection
• Lamp life up to 10,000 hours in ExtremeEco mode
